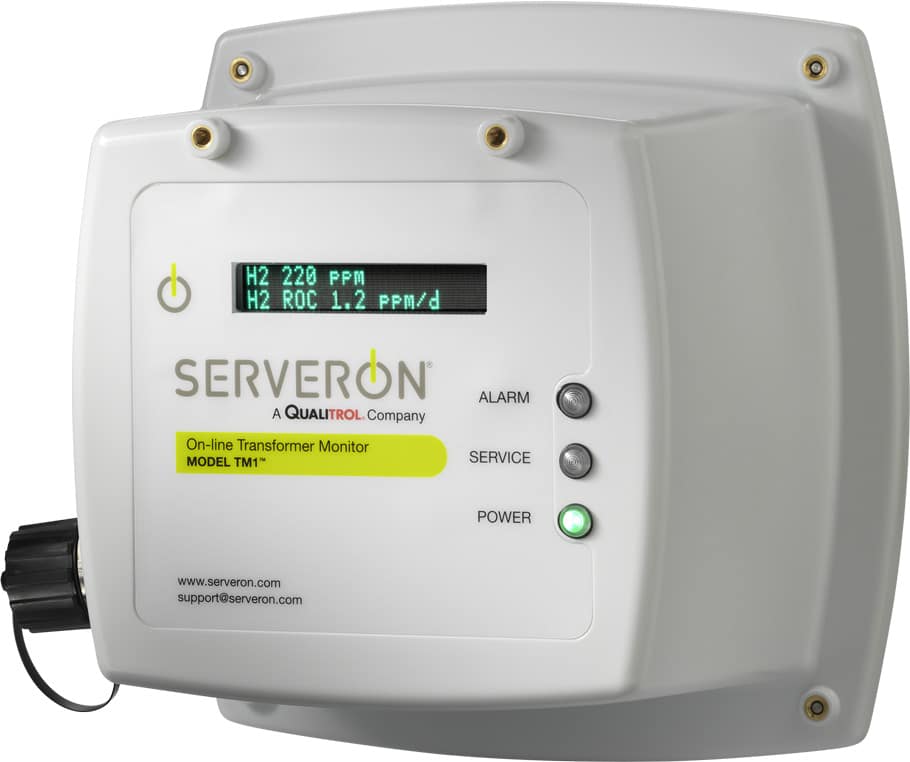

Serveron® TM1 Single Gas On-line Dissolved Gas Monitor

The Serveron® Model TM1 offers a breakthrough price/ performance point in on-line DGA. For the first time, the benefits of on-line condition monitoring can be realized across the distribution transformer fleet. The Serveron® TM1 continuously monitors and reports hydrogen PPM Levels and can be programmed to alarm based on PPM Levels and/or Rate of Change (ROC), warning operators of potentially disruptive transformer faults and pending failures.

Features

Responds only to Hydrogen: no cross interference or composite measurements.
Rapid step change response facilitated by active oil circulation over the sensor itself.
Single Valve mount
Low Cost of Ownership:
No Membrane – directly immersed sensor
No Sensor replacement or recalibration required for life of monitor
No Consumables or routine service required

Options

Moisture-in-oil and oil temperature measurement.
Qualitrol provides utilities with the following services for our on-line DGA monitors.
Turnkey Installation Services including Serveron® TM1 deployment and TM View software user training
Serveron® Monitoring Service (SMS) offers the convenience of secure 24×7 access to all of your Serveron® DGA transformer monitor data from any Internet-connected Windows PC running our SMS software.
A variety of service plans to guarantee monitor operation over the long term

Applications

The Serveron® TM1 offers a breakthrough price/performance point in on-line DGA for distribution and other power transformers in the grid. For the first time, the benefits of on-line condition monitoring can be realized across the distribution transformer fleet. Hydrogen gas buildup in transformer oil is an early indicator of incipient transformer faults. The Serveron® TM1 continuously monitors hydrogen PPM Levels and can be programmed to alarm based on PPM Levels and/or Rate of Change (ROC), warning operators of potentially disruptive transformer faults and pending failures.

Product Brochure
